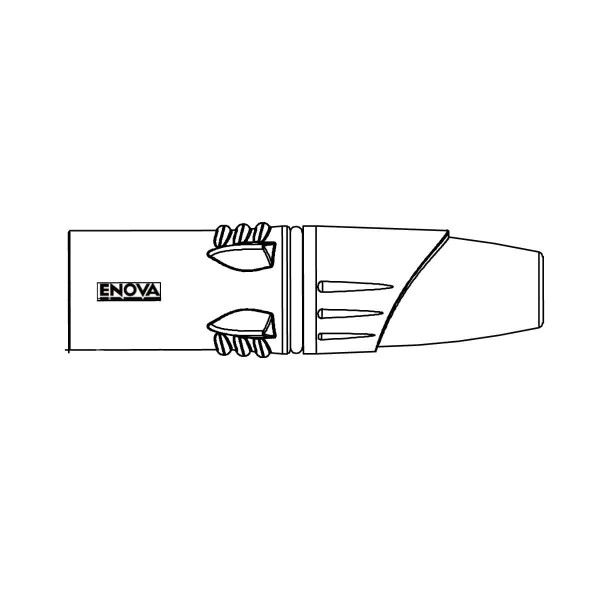

ENOVA XLR Microphone Connector 3-Pin Male Grey Boot Solder Cups Black Housing
No reviews
SKU XL23MB
Download As PDF
ENOVA XLR Microphone Connector 3-Pin Male Grey Boot Solder Cups Black Housing
Specifications
| Brand: | ENOVA |
| Series: | XL-Serie |
| Version (Plug / Chassis): | Cable Version |
| Connector type: | XLR, XLR male 3 pol |
| Number of contacts: | 3 |
| Gender (M / F): | Male plug |
| Connector housing color: | Black |
| Cable diameter min. in mm: | Ø 3.3 mm |
| Cable diameter max. in mm: | Ø 7 mm |
| Wiring mode: | Solder contact |
| Material connector housing: | ZZNAL4-1 |
| Material contact: | H59-1 |
| Working temperature minimum: | -30° |
| Working temperature maximum: | +80° |
| Plug cycle: | 1000 |
| Classification flammability of plastics: | UL94HB |
| ROHS according to EN62321-1: | Yes |
| Country of origin: | China |
| Operating voltage (VAC.RMS): | < 50 V |
| Insulation resistance: | > 10 GΩ |
| Contact resistance: | ≤ 3 mΩ |
| Applications: | DJ, Keyboard player, Lighting technician, Singer, Sound engineer |
| Markets: | Event Production, Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Multimedia installation, Digital signage, Cable Assembly, Lighting, System integrator, Outdoor lighting, Broadcast, Recording studio |
Additional Information
SKU: XL23MB
UPC: 7640383070028
